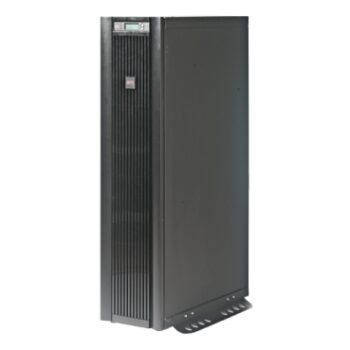

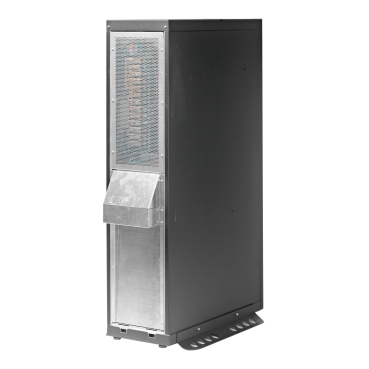

SUVTP40KHS 40KVA APC UPS 3 Phase in 3 Phase Out
| Presentation | UPS is supplied without batteries. 3rd party battery system must be purchased separately. SUVTP40KHS 40KVA APC UPS |
|---|---|
| Lead time | Usually Ships within 2 Weeks |
Run time for load 24000W information_stroke Min-max: 1200-24000 W | — |
|---|---|
Max. Capacity Used information_stroke | 100 % |
| Main Input Voltage | 400 V 3 phases |
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| Rated power in W | 32000 W |
| rated power in VA | 40000 VA |
| Output connector type | Hard wire 4-wire (3P + E) 1 Hard wire 5-wire (3P + N + E) 1 |
| Connections – terminals | 1 screw terminals |
| Provided equipment | CD with software Network management card Smart UPS signalling RS-232 cable User manual Bolt down brackets Installation guide Start up included |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Battery type | External battery system |
| Extended runtime | 0 |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| UPS type | Double conversion online |
| Colour | Black |
|---|---|
| Height | 82.3 cm |
| Width | 35.2 cm |
| Depth | 81.3 cm |
| Net weight | 134 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Maximum input current | 21 A |
|---|---|
| Input Power Factor at Full Load | 0.98 |
| Switching current capacity | 35 A |
| Input voltage limits | 304…477 V |
| Number of input connectors | 1 hard wire 5-wire (3P + N + E) |
| Network frequency | 47…70 Hz auto-sensing |
| Bypass type | Built-in maintenance bypass Built-in static bypass |
|---|---|
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 40000 VA |
| Maximum configurable power in W | 32000 W |
| Maximum output current | 48 A |
| Wave type | Sine wave |
| Output frequency | 47…53 Hz for 50 Hz nominal sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised |
| Additional information | Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage |
| Product certifications | C-Tick CE RCM |
|---|
| Acoustic level | 54 dBA |
|---|---|
| Heat dissipation | 1928 Btu/h |
| Operating altitude | 0…3333 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -50…40 °C |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Emergency power off | Yes |
|---|---|
| Free slots | 0 |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Alarm | Audible and visible alarms : prioritized by severity |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 129 cm |
| Package 1 Width | 111 cm |
| Package 1 Length | 72 cm |
| Package 1 Weight | 173 kg |
| Warranty | 1 year repair or replace, Start-Up Service |
|---|
For Order WhatsApp now to AMS +92321-4466685 Latest & best price available at wholesale rates in Pakistan.
