Imtroduction of Dyness Stack100 High Voltage Lithium Battery – Pakistan
- 15.36-76.8kWh
- Max expandable to 921.6kWh

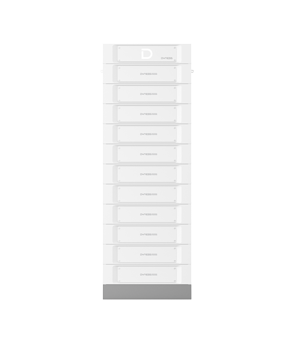

The Dyness STACK100 energy storage system is widely used in energy storage sector. It adopts modular design and can be used for residential and C&I applications. The reliable LiFeP04 technology ensures maximum safety and a longer life cycle.
Product Features
Flexible Expansion
Up to 12 clusters in parallel, 15KWh–921KWh capacity
Ultra Safe
Intelligent fire extinguishing system, react within 5 seconds.
1C Rate
Suitable for grid frequency regulation, charging stations and other scenarios, cost saving.
Easy Installation
0 wiring, rackless free stacking, plug-and-play, one cluster installation in 30min.
Automatic Self-heating
-20°C to 55°C operating temperature (optional)
Technical Specifications
Modular Design, Plug-and-Play
Frameless stacking cuts space & costs.
47kg module, 30-min quick install.
Built-in square steel frame ensures stable load-bearing.
Scalable, Multi-scenario
Supports 12-cluster parallel.
15kWh-921kWh energy range.
restaurants, warehouses, farms, and more.
3-year modular flexibility, scalable for cost savings.
1C Charge/Discharge, Noticeable Efficiency Boost
Modules independently charge/discharge at max 86.4kW, ensuring business runs smoothly. Charging at lows, discharging at peaks cuts electricity costs.
5S Auto Fire Extinguishing, Thoughtful Protection
Each module includes an aerosol fire extinguisher that quickly acts within 5 seconds of detecting high temp, minimizing fire risks and ensuring safety.
New Internal Cooling Design Boosts Lifespan By 20%
Our battery module’s unique vents keep temps steady (≤3℃ difference), keeping cells cool indoors and extending battery life by 20%.
