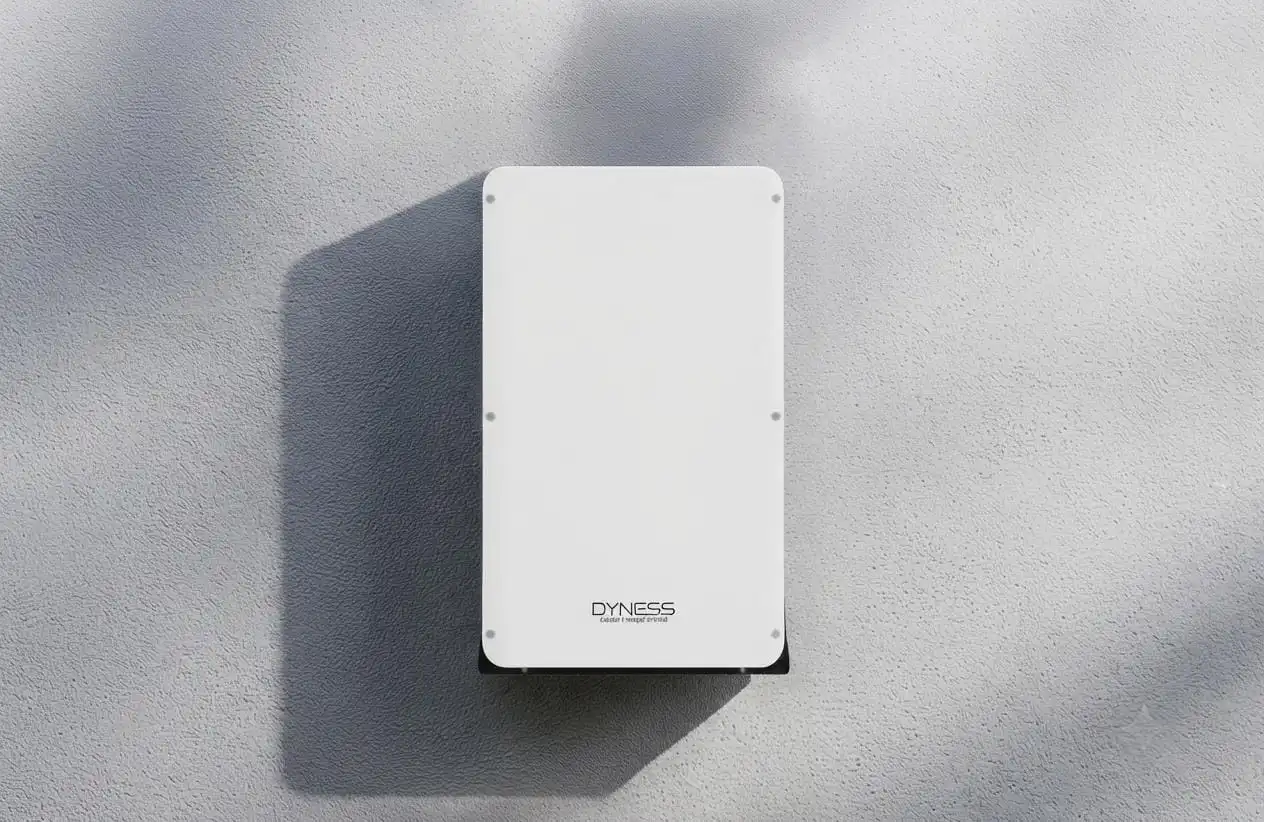

Dyness Powerbox Pro 10.24kWh — The First IP65 Outdoor Battery in Pakistan
A low-voltage LiFePO4 battery rated to live outside. Mount it on a boundary wall or beside the meter box — no dedicated battery room required.
Rs. 560,000
Dyness Powerbox Pro — first time in Pakistan, available at AMS Security Vision
Built to Live Outside
IP65 Rated
Dust-tight and protected against low-pressure water jets — the rare Dyness low-voltage model approved for genuine outdoor mounting.
10.24 kWh
Double the capacity of a single DL5.0F unit, enough to back up most homes through a full load-shedding cycle.
Cell Equalization
Cell-level passive balancing prevents SOC jumps and extends the useful life of the battery pack.
Scales to 512kWh
Connect up to 50 units in parallel — start with one outdoor unit, grow into a full commercial bank later.
Dyness Powerbox Pro Technical Data
| Battery Type | LiFePO4 (LFP) |
| Nominal Battery Energy | 10.24 kWh |
| Usable Battery Energy | 9.216 kWh |
| Nominal Capacity | 200Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8V ~ 57.6V |
| Recommended Charge & Discharge Power | 5.12 kW |
| Discharge Temp. Range | -20°C ~ 55°C |
| Net Weight | 99.3 kg |
| Dimensions (W/D/H) | 555/210/928 mm |
| Protection Level | IP65 (indoor & outdoor) |
| Cycle Life | ≥6,000 cycles |
| Warranty | 10 Years |
| Compatible Inverters | SMA, Schneider, Victron, Solis, GoodWe, Growatt, Deye, Apsystem |
9.216kWh Usable, Every Cycle
Out of 10.24kWh nominal capacity, 9.216kWh is safely usable at 90% DOD — enough to run lights, fans, fridge, and internet through a typical load-shedding window.
IP65 vs Standard IP20 — Where Each Battery Can Actually Go
IP20 batteries are protected against solid objects larger than 12.5mm but have no water protection at all — they need a dry, enclosed room. IP65 batteries like the Powerbox Pro are dust-tight and protected against water jets from any direction, so they can be fixed to an outside wall through Karachi's monsoon rain or Lahore's dust storms.

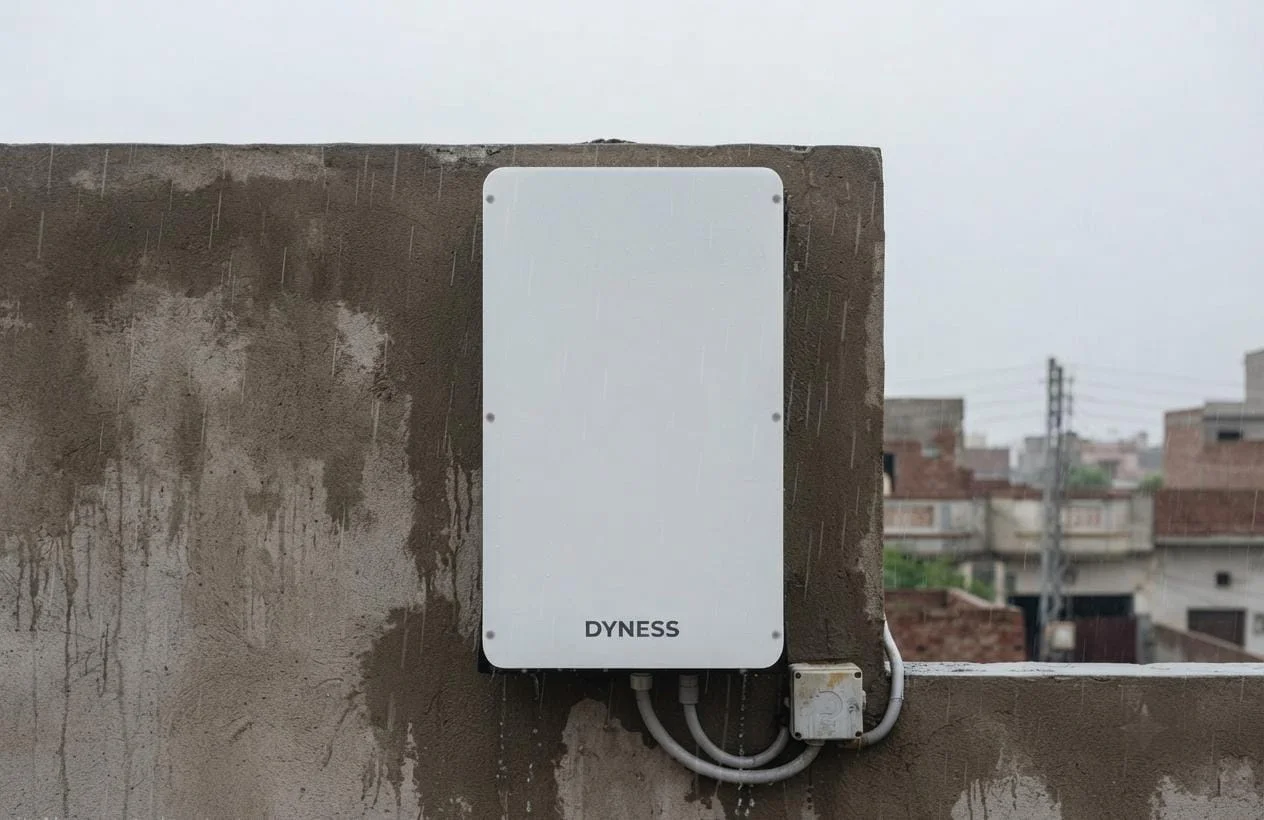

IP65 rating means Powerbox Pro can be wall-mounted outdoors, rain or shine
Frequently Asked Questions
What is the price of Dyness Powerbox Pro in Pakistan?
The Dyness Powerbox Pro 10.24kWh IP65 battery is priced at Rs. 560,000 in Pakistan, available through AMS Security Vision as the first authorized importer of this model.
Can the Powerbox Pro be installed outdoors?
Yes. The Powerbox Pro carries an IP65 rating, meaning it is dust-tight and protected against water jets, making it suitable for outdoor wall-mounted or floor-mounted installation.
How much usable energy does the Powerbox Pro provide?
The Powerbox Pro provides 9.216 kWh of usable energy from its 10.24 kWh nominal capacity, at 90% depth of discharge.
How many Powerbox Pro units can be connected together?
Up to 50 units can be connected in parallel, scaling total capacity from 10.24kWh up to 512kWh.
Which inverters work with the Dyness Powerbox Pro?
The Powerbox Pro is compatible with SMA, Schneider, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, Deye, and Apsystem inverters.
What warranty does the Powerbox Pro carry in Pakistan?
The Powerbox Pro carries Dyness's standard 10-year manufacturer warranty, honored in Pakistan through AMS Security Vision.
What Customers Are Saying
Replace these placeholder reviews with real customer feedback once units are installed, to keep the ratings schema accurate.
Faisal M. — DHA Phase 5, Karachi
Finally a Dyness battery I can install outside — saved me from building a separate battery room.
Ayesha N. — Bahria Town, Islamabad
Saw this at the PSA Solar Expo in Lahore and ordered right after. 10kWh is enough to run our whole house through load-shedding.
Waqas H. — Model Town, Lahore
Solid build, IP65 housing looks tough.
Download the Official Dyness Powerbox Pro Datasheet
📄 Download PDF Datasheet

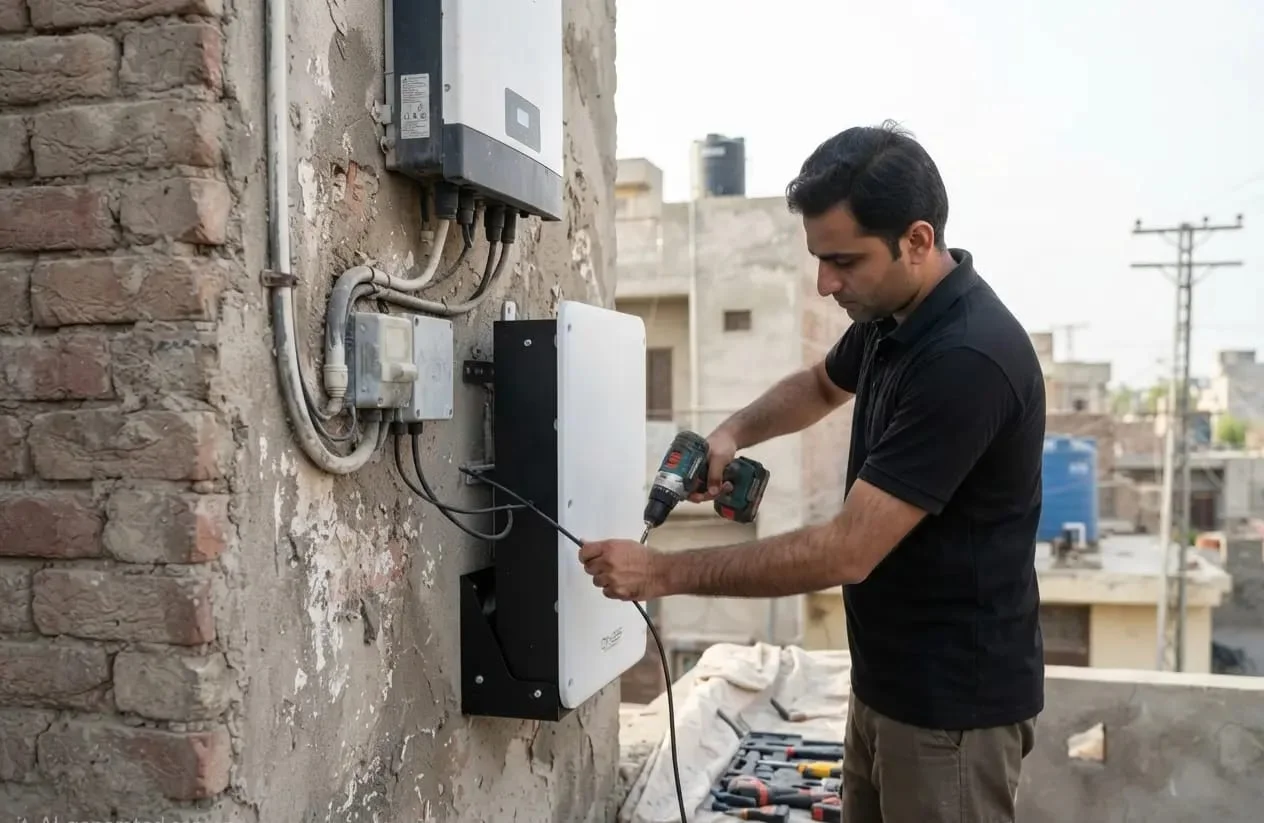

AMS Security Vision installation team fitting a Powerbox Pro unit
