Dyness DL5.0F 5.12kWh Lithium Battery — Self-Heating, Smarter Status, Longer Life
The newest Dyness low-voltage battery, launched globally this year and brought to Pakistan first by AMS Security Vision. Built for homes that need reliable backup through load-shedding — and cold nights.
Rs. 255,000
Dyness DL5.0F — first time in Pakistan, available at AMS Security Vision
Four Upgrades Over the Older DL5.0C
Self-Heating
Optional automatic cell heating charges the battery safely down to -20°C — built for cold nights in Islamabad, Murree, and the Galiyat.
Blinking D-Logo
A live illuminated status light on the front panel — see charge and fault status at a glance, no app required.
8,000 Cycles
Rated cycle life jumps from 6,000 to 8,000 cycles — roughly 30% more usable lifetime versus the DL5.0C.
Fire Suppression
Optional built-in aerosol fire extinguisher detects and responds within 5 seconds for added protection.
Dyness DL5.0F Technical Data
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Usable Battery Energy | 4.864 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8V ~ 57.6V |
| Max. Discharge Rate | 1C (100A) |
| Max. Discharge Power | 5.12 kW |
| Charge Temp. Range | 0~55°C / -20~55°C (self-heating) |
| Net Weight | 41 kg |
| Dimensions (W/D/H) | 345/548/146 mm |
| Protection Level | IP20 (indoor) |
| Cycle Life | ≥8,000 cycles |
| Warranty | 10 Years |
| Compatible Inverters | SMA, Schneider, Victron, Solis, GoodWe, Growatt, Deye, Apsystem |
Why 95% DOD Matters
Out of 5.12kWh nominal, you actually get to use 4.864kWh before the battery protects itself — one of the highest usable percentages in this battery class, so less capacity sits "locked away."
How DL5.0F Stacks Up Against the Rest of the 5.12kWh Line-Up
*DL5.0C Pro and Power Depot G2 cycle-life figures vary by datasheet revision — confirm against current Dyness documentation before publishing.
| Spec | DL5.0F | DL5.0C Pro | DL5.0C | Power Depot G2 | BX-51100 |
|---|---|---|---|---|---|
| Nominal Energy | 5.12 kWh | 5.12 kWh | 5.12 kWh | 5.12 kWh | 5.12 kWh |
| Self-Heating | Yes | Optional* | No | Model-dependent* | No |
| Status Indicator | Blinking D-logo | Standard LED | Standard LED | Standard LED | Standard LED |
| Fire Suppression | Yes (optional) | Model-dependent* | No | Model-dependent* | No |
| Design | Module-free | Module | Module | Stackable module | Module |
The illuminated D-logo blinks to show live charging and system status
Frequently Asked Questions
What is the price of Dyness DL5.0F in Pakistan?
The Dyness DL5.0F 5.12kWh lithium battery is priced at Rs. 255,000 in Pakistan, available exclusively through AMS Security Vision as the first authorized importer of this model.
What makes the DL5.0F different from the DL5.0C?
The DL5.0F adds optional self-heating for charging down to -20°C, a blinking D-logo status indicator, an 8,000-cycle rating, and a module-free cell-to-pack design, compared to the DL5.0C's 6,000-cycle rating with no self-heating.
How many units can be connected in parallel?
Up to 50 DL5.0F units can be connected in parallel, scaling total capacity from 5.12kWh to 256kWh.
Which inverters work with the Dyness DL5.0F?
The DL5.0F is compatible with SMA, Schneider, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, Deye, and Apsystem inverters.
Is the DL5.0F suitable for outdoor installation?
No. The DL5.0F is IP20-rated for indoor installation only. For outdoor use, AMS Security Vision recommends the IP65-rated Dyness Powerbox Pro.
What warranty does the DL5.0F carry in Pakistan?
The DL5.0F carries Dyness's standard 10-year manufacturer warranty, honored in Pakistan through AMS Security Vision.
What Customers Are Saying
Replace these placeholder reviews with real customer feedback once units are installed, to keep the ratings schema accurate.
Bilal A. — DHA Phase 6, Lahore
Ordered the DL5.0F right after seeing it at the PSA Solar Expo. Installation was quick and support has been responsive.
Sana K. — Bahria Town, Islamabad
Chose this over the older DL5.0C because of the self-heating — Islamabad winters get cold and I didn't want charging issues.
Imran R. — Gulshan-e-Iqbal, Karachi
Good build quality, pairs well with our Growatt inverter.
Download the Official Dyness DL5.0F Datasheet
📄 Download PDF Datasheet

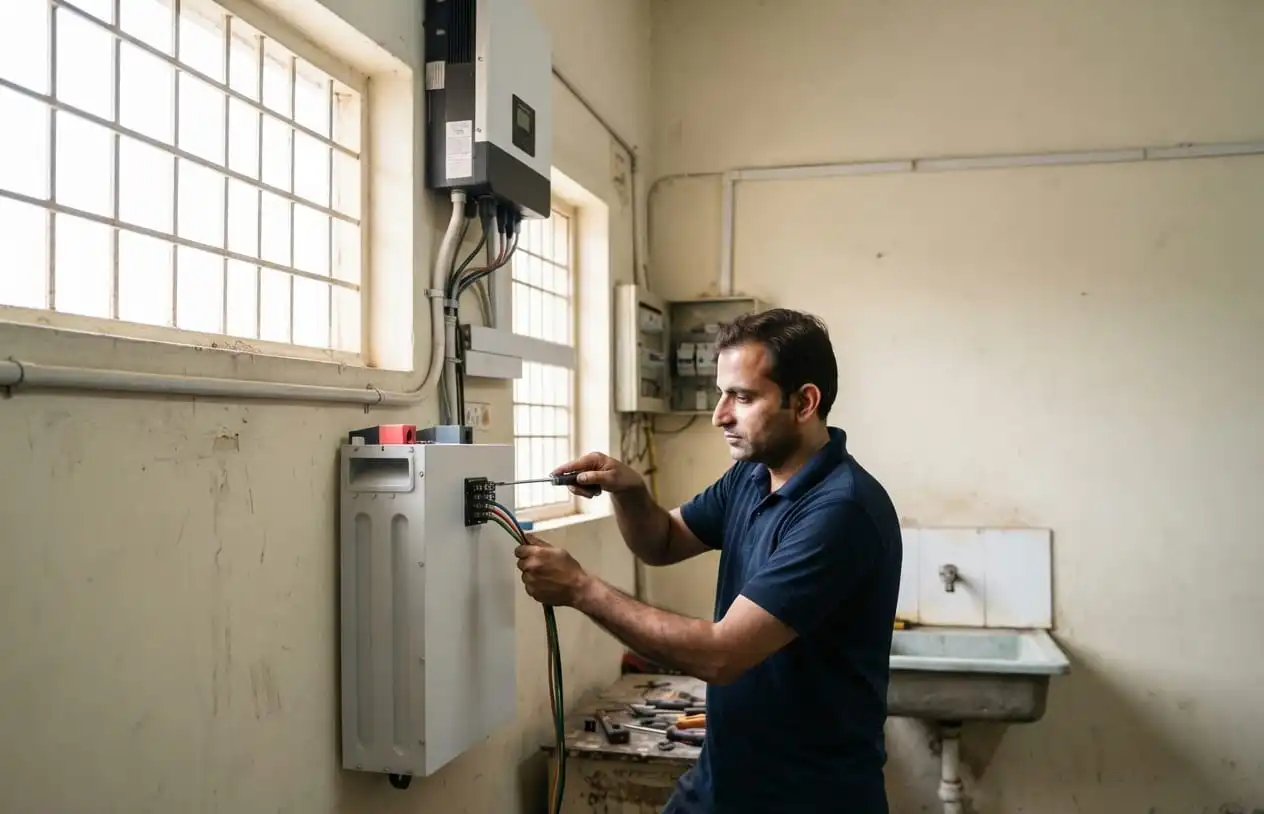

Professional installation by AMS Security Vision, Lahore
